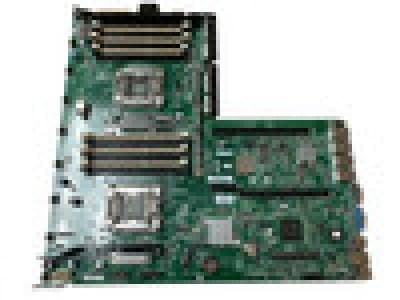

HP MOTHERBOARD FOR HP PROLIANT DL360E G8 / DL380E G8 ( GEN8 ) - SYSTEM BOARD

MANUFACTURER: HP
PART NUMBER: 647400-001
COMPATIBILITY: HPE PROLIANT DL360E G8 / DL380E G8 ( GEN8 )
PROCESSOR DETAIL

NUMBER OF PROCESSORS SUPPORTED: ( 2 ) TWO PROCESSORS
SOCKET TYPE: FCLGA1356
PROCESSOR TYPE: INTEL XEON E5-2400 PROCESSOR FAMILY
MEMORY DETAIL

NUMBER OF MEMORY SLOTS: 12 TOTAL MEMORY SLOTS ( 3 CHANNELS PER PROCESSOR / 6 DIMM PER PROCESSOR / 2 DIMMs PER CHANNEL )
MEMORY TYPE: UP TO DDR3-1600
LRDIMM MEMORY SIZE CAPACITY: UP TO 384GB ( 1333MHZ )
RDIMM MEMORY SIZE CAPACITY: UP TO 192GB ( 1600MHZ )
UDIMM MEMORY SIZE CAPACITY: UP TO 96GB ( 1333MHZ )
PCI INTERFACE DETAIL VIA DL360E G8

NUMBER OF PCI SLOTS: 2 INTERFACES ( ONBOARD ) ( UP TO 2 SLOTS VIA RISER BOARD / RISER CARD NOT INCLUDED WITH SYSTEM BOARD )
PCI RISER SLOT:
- SLOT1 PCI-E 3.0 X16 ( FULL HEIGHT / HALF LENGTH )
- SLOT2 PCI-E 2.0 X4 ( X8 WIRED - LOW PROFILE )
PCI INTERFACE DETAIL VIA DL380E G8

NUMBER OF PCI SLOTS: 2 INTERFACES ( ONBOARD ) / UP TO 6 PCI SLOTS VIA RISER BOARD, RISER CARD NOT INCLUDED WITH SYSTEM BOARD
PRIMARY RISER SLOTS ( STANDARD ):
- SLOT1 PCI-E 3.0 X4 ( X8 WIRED / FULL HEIGHT, FULL LENGTH )
- SLOT2 PCI-E 3.0 X8 ( X16 WIRED / FULL HEIGHT / HALF LENGTH )
- SLOT3 PCI-E 3.0 X8 ( FULL HEIGHT / HALF LENGTH )
- SLOT4 PCI-E 2.0 X4 ( X8 WIRED / LOW PROFILE )
