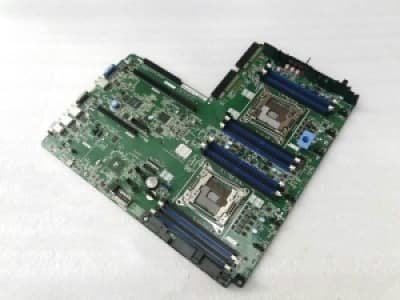

LENOVO MOTHERBOARD FOR LENOVO THINKSERVER RD350 / RD450 - SYSTEM BOARD

MANUFACTURER: LENOVO
PART NUMBER: 00HV173
COMPATIBILITY: LENOVO THINKSERVER RD350 / RD450
PROCESSOR DETAIL

NUMBER OF PROCESSORS SUPPORTED: ( 2 ) TWO PROCESSORS
SOCKET TYPE: FCLGA2011-3
PROCESSOR TYPE: INTEL XEON E5-2600V3 PROCESSOR FAMILY
PROCESSOR CORE COUNT: UP TO 12 CORES
PROCESSOR WATTAGE: UP TO 105W
MEMORY DETAIL

NUMBER OF MEMORY SLOTS: 16 TOTAL MEMORY SLOTS
MEMORY TYPE: UP TO DDR4-2133
RDIMM MEMORY SIZE CAPACITY: UP TO 512GB
LRDIMM MEMORY SIZE CAPACITY: UP TO 1024GB
PCI INTERFACE DETAIL VIA RD350

NUMBER OF PCI SLOTS: 2 INTERFACES ( UP TO 2 PCI SLOTS VIA RISER BOARDS / RISER CARDS NOT INCLUDED WITH SYSTEM BOARD )
PRIMARY RISER:
- SLOT1 PCI-E 3.0 X16 ( CPU1 ) ( FULL HEIGHT, HALF LENGTH )
SECONDARY RISER:
- SLOT2 PCI-E 3.0 X16 ( CPU2 ) ( HALF LENGTH, LOW PROFILE )
PCI INTERFACE DETAIL VIA RD450

NUMBER OF PCI SLOTS: 3 INTERFACES ( UP TO 6 PCI SLOTS VIA RISER BOARDS / RISER CARDS NOT INCLUDED WITH SYSTEM BOARD )
PRIMARY RISER:
- SLOT1 PCI-E 3.0 X8 ( CPU1 ) ( X16 WIRED / FULL HEIGHT, HALF LENGTH )
- SLOT2 PCI-E 3.0 X8 ( CPU1 ) ( X16 WIRED / FULL HEIGHT, HALF LENGTH )
SECONDARY RISER:
- SLOT3 PCI-E 3.0 X8 ( CPU2 ) ( X16 WIRED / LOW PROFILE )
- SLOT4 PCI-E 3.0 X8 ( CPU2 ) ( X16 WIRED / LOW PROFILE )
- SLOT5 PCI-E 3.0 X8 ( CPU2 ) ( X16 WIRED / LOW PROFILE )
ONBOARD RISER INTERFACE ( 3RD ONBOARD INTERFACE ):
- SLOT6 PCI-E 3.0 X8 ( CPU2 ) ( X16 WIRED / LOW PROFILE )
