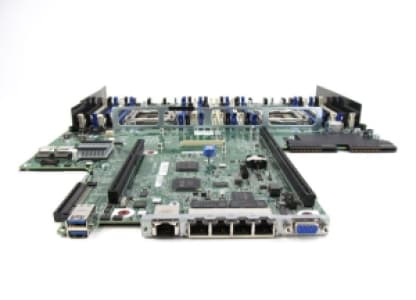

HP MOTHERBOARD FOR HPE PROLIANT DL360 G9 / DL380 G9 / HYPER CONVERGED 380 / STOREONCE 3520 / SIMPLIVITY 380 G9 / STOREONCE 5500 SYSTEMS ( GEN9 ) - SYSTEM BOARD

MANUFACTURER: HP
PART NUMBER: 843307-001
COMPATIBILITY: HPE PROLIANT DL360 G9 / DL380 G9 / HYPER CONVERGED 380 / STOREONCE 3520 / SIMPLIVITY 380 G9 / STOREONCE 5500 SYSTEMS ( GEN9 )
PROCESSOR DETAIL

NUMBER OF PROCESSORS SUPPORTED: ( 2 ) TWO PROCESSORS
SOCKET TYPE: FCLGA2011-3
PROCESSOR TYPE: INTEL XEON E5-2600V3 / INTEL XEON E5-2600V4 FAMILY
MEMORY DETAIL

NUMBER OF MEMORY SLOTS: 24 TOTAL MEMORY SLOTS ( 12 PER PROCESSOR / 4 CHANNELS PER PROCESSOR )
MEMORY TYPE: UP TO DDR4-2400
MEMORY SIZE CAPACITY: UP TO 3TB LRDIMM OR UP TO 768GB RDIMM OR 128GB NVDIMM ( X16 MODULES MAX )
PCI INTERFACE DETAIL VIA DL360 G9

NUMBER OF PCI SLOTS: 2 INTERFACES ( VIA RISER BOARDS / RISER CARDS NOT INCLUDED WITH SYSTEM BOARD )
PRIMARY RISER:
- SLOT1 PCI-E 3.0 X16 ( CPU1 / FULL HEIGHT, 3/4 LENGTH UP TO 9.5 INCH ) / SLOT2 PCI-E 3.0 X8 ( CPU1 / LOW PROFILE )
- SLOT2 PCI-E 3.0 X8 ( CPU1 / LOW PROFILE )
SECONDARY RISER:
- PCI-E 3.0 X16 ( CPU2 / FULL HEIGHT, FULL LENGTH, LOW PROFILE )
- PCI-E 3.0 X16 ( CPU2 / FULL HEIGHT, 3/4 LENGTH ) ( IF SECONDARY FH KIT IS INSTALLED, PRIMARY RISER SLOT 2 CANNOT BE USED )
ADDITIONAL PCI INFORMATION: OPTIONAL FLEXIBLE LOM SLOT
PCI INTERFACE DETAIL VIA DL380 G9

NUMBER OF PCI SLOTS: 2 INTERFACES ( UP TO 6 PCI SLOTS VIA RISER BOARDS / RISER CARDS NOT INCLUDED WITH SYSTEM BOARD )
PRIMARY RISER:
- SLOT1 PCI-E 3.0 X8 ( CPU1 / X16 WIRED / FULL HEIGHT, HALF LENGTH )
- SLOT2 PCI-E 3.0 X8 ( CPU1 / X16 WIRED / FULL HEIGHT, HALF LENGTH )
- SLOT3 PCI-E 3.0 X8 ( CPU1 / FULL HEIGHT, HALF LENGTH )
SECONDARY RISER:
- SLOT4 PCI-E 3.0 X16 ( CPU2 / FULL HEIGHT, FULL LENGTH )
- SLOT5 PCI-E 3.0 X16 ( CPU2 / FULL HEIGHT, FULL LENGTH )
- SLOT6 PCI-E 3.0 X8 ( CPU2 / FULL HEIGHT, HALF LENGTH )
OPTIONAL PRIMARY RISER:
- SLOT2 PCI-E 3.0 X16 ( CPU1 / FULL HEIGHT, FULL LENGTH )
- SLOT3 PCI-E 3.0 X16 ( CPU1 / FULL HEIGHT, HALF LENGTH )
